DUNLOP TYRE PRESSURE INFORMATION.

 In barTarget Running Pressure *1Setting Cold
(Ambient)		Warmer SettingSetting after warmers
 *3		MINIMUM Running Pressure *2
Slick
KR106 120/70R17Front2.3 ~ 2.62.1Min 60' @ 80°C2.42.1
KR109 110/70R17Front2.2 ~ 2.41.8Min 60' @ 80°C2.02.0
KR109 125/80R17Front2.2 ~ 2.51.9Min 60' @ 90°C2.32.1
KR108 140/70R17Rear1.4 ~ 1.61.1Min 60' @ 80°C1.41.4
KR108 SSP 190/55R17Rear1.5 ~ 1.71.2Min 60' @ 100°C1.41.5
KR108 SSP 185/70R17Rear1.5 ~ 1.71.2Min 60' @ 100°C1.41.5
KR108 195/65R17Rear1.5 ~ 1.71.2Min 60' @ 100°C1.41.5
KR108 200/70R17Rear1.5 ~ 1.71.2Min 60' @ 100°C1.41.4
SPORTMAX SLICK 90/80R17Front1.8 ~ 2.31.8 2.11.7
SPORTMAX SLICK 115/70R17Rear1.9 ~ 2.41.6 1.91.8
Road Legal
D213 GP PRO
110/70R17Front2.2 ~ 2.41.8Min 60' @ 80°C2.02.0
120/70ZR17Front2.4 ~ 2.62.0Min 60' @ 80°C2.32.4
140/70R17Rear1.8 ~ 1.91.4 ~ 1.5Min 60' @ 80°C1.7 ~ 1.81.7
180/60ZR17, 200/60ZR17Rear1.5 ~ 1.71.2Min 60' @ 100°C1.41.4
Wet
KR189Front2.2 ~ 2.42.0 ~ 2.2Optional - Max 20' @ 40°C 1.9
KR389Rear2.1 ~ 2.32.0 ~ 2.2Optional - Max 20' @ 40°C 1.9
KR191Front2.2 ~ 2.42.2Optional - Max 20' @ 40°C 1.9
KR393 190/55 R17Rear2.2 ~ 2.42.2Optional - Max 20' @ 40°C 1.9
KR393 195/65 R17Rear1.5 ~ 1.71.4Optional - Max 20' @ 40°C 1.5
TrackDay/Easy Race
GP RACER D212 / SLICKFront2.4 ~ 2.52.1Min 60' @ 80°C2.3 ~ 2.42.4
 Rear1.5 ~ 1.71.0 ~ 1.1Min 60' @ 100°C1.4 ~ 1.51.4
Drag Racing
DRAGMAX  190/50ZR17Rear 0.75 ~ 0.9
Hypersport
SportSmart TT
110/70R17Front2.0 ~ 2.31.8 ~ 2.0
120/70ZR17Front2.2 ~ 2.51.9 ~ 2.2
120/70ZR19Front2.4 ~ 2.52.1 ~ 2.2
140/70, 150/60, 160/60Rear1.9 ~ 2.31.7 ~ 1.9
170/60ZR17Rear2.7 ~ 2.92.4 ~ 2.5
180/55, 180/60, 190/55, 200/55Rear1.8 ~ 2.41.5 ~ 1.9
SportSmart mk3Front 2.2
 Rear 2.4
SportSmart mk4Front 2.4
 Rear 2.5
Qualifier COREFront2.52.2
 Rear2.72.4
Scooter / Mini bike
TT93 GP / GP PROF/R 1.6 ~ 1.7
SPORTMAX SLICKFront1.4 ~ 1.71.3
 Rear1.5 ~ 1.81.3
SPORTMAX RAINF/R 1.7 ~ 1.8
IMPORTANT INFORMATION TO ENSURE YOUR TRACK TYRES ARE AT THE OPTIMUM OPERATING PRESSURE.

*1 - DUNLOP ADVISE THAT OPTIMUM PERFORMANCE WILL BE FOUND WITH AN OPERATING PRESSURE IN THIS RANGE.

*2 - FOR SAFE OPERATION NEVER RUN BELOW THE MINIMUM PRESSURE.

*3 >> SETTING IN WARMERS IS RECOMMENDATION TO ACHIEVE MINIMUM RUNNING PRESSURE. IT IS IMPORTANT TO MONITOR RUNNING PRESSURE TO CONFIRM MINIMUM RUNNING PRESSURE HAS BEEN REACHED.

ALL RECOMMENDATIONS LISTED ON DUNLOP.EU REFER TO RACE TRACK USE ONLY.

FOR ROAD RACING USAGE, TO REFER TO LOCAL DUNLOP SUPPORT (+0.1b FOR REARS VERSUS RACE TRACK RECOMMENDATION)

FOR ALL USE ON PUBLIC ROADS, REFER TO THE VEHICLE OWNER’S MANUAL PRESSURE RECOMMENDATIONS.

  • Setting pressures are a guide to achieve desired operating pressure.
  • Running pressure should be measured immediately after entering the garage / pit area.
  • Pressure gauges should be regularly checked for correct calibration.
  • Indicated pressures are average values; ideal pressures may vary depending on motorcycle, racetrack, track and ambient temperature, bike set-up and riding style.
  • Stable equilibrium running pressures are reached after approx 5~8 laps.
  • Dunlop sell top-level performance and that includes on-track advice: see your Dunlop Motorsport service crew at the track.
  • The use of tyre warmers is mandatory for professional dry weather racing tyres (KR, GP PRO) and highly recommended for track day tyres (GP RACER).
  • The use of tyre warmers is prohibited for road-biased tyres (eg. SportSmart Mk3) and wet racing tyres (KR wets). Warmers may be used with SportSmart TT, but are not needed thanks to their very short warm-up time.
Moto3 World Championship riders on Dunlop Moto3 tyres

TESTED BY
CHAMPIONS.

DUNLOP MOTORSPORT

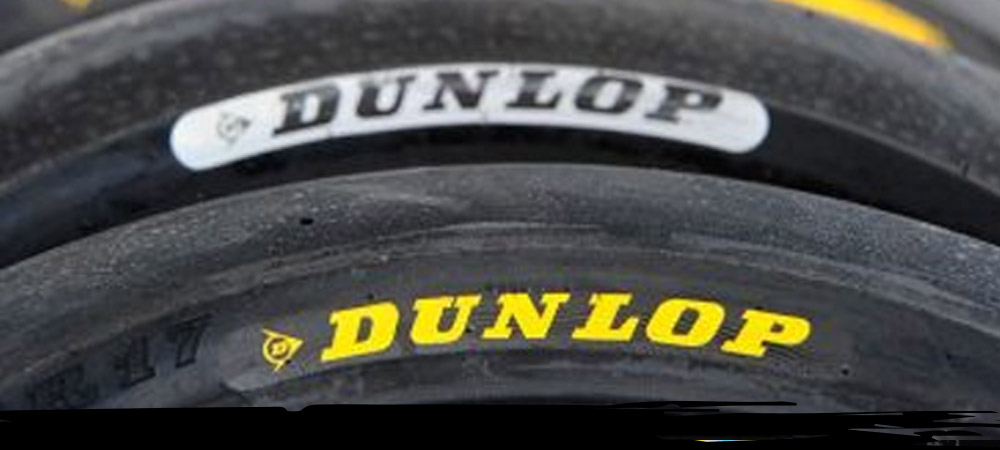

Closeup of the Dunlop KR sidewall
